The whole scenario is that the chat server will communicate with the external database through a dynamic application, like PHP, ASP, ASP.net or JSP. The auth-url is the abbreviation of authentication URL.

It is simple and stable, therefore recommended method to accomplish the integration. It requires you to be familiar with your own database, and capable of coding dynamic webpage. The sample of the auth-url dynamic webpage is available, simply and you can send email to support@123flashchat.com to request.

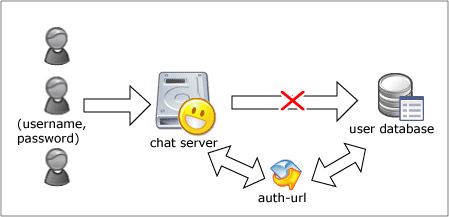

Explicitly, the Auth-URL application will perform as the communicating medium of the chat server and the database, i.e: in fact, when a user logs in a chat server, the server won't connect to the user database directly, instead, it will send the username and password to the auth-url. Then the auth-url requests the database to authenticate the user. Then the auth-url will return the feedback to the chat server in a predefined way, whether approved or declined.

Auth URL Output:
(What does each number means in terms of the authentication result.)
0 - login successfully;
1 - wrong password;
2 - the username can't be used;
3 - login error
4 - username does not exist
5 - successfully log in as an administrator

Note: Dealing with guest login, the auth-url will get no password and fail to find any username in the database, in that case, auth-url should respond with 4 to ensure the user to enter chat room smoothly. If respond 0, 1 or 5, the chat server will decide the username is already taken and decline the user's connection effort.
